Overview
Quick Release Hose Clamp is designed for installations where a standard closed clamp is inconvenient to slide over the end of a hose, duct, pipe, or equipment component. The quick-release housing can open, wrap around the application, snap back into position, and then tighten with the screw.
This makes it useful for maintenance teams, ventilation installers, machinery repair, plumbing work, irrigation lines, construction assemblies, and duct systems where clamps may need to be installed, removed, adjusted, or reused.
If the project needs a 30m cut-to-length band roll with matching clips or housings, see the related Boxed Quick-Release Hose Clamp Roll with Hose Strip and Clips. The product on this page is the fixed-range quick-release clamp version.

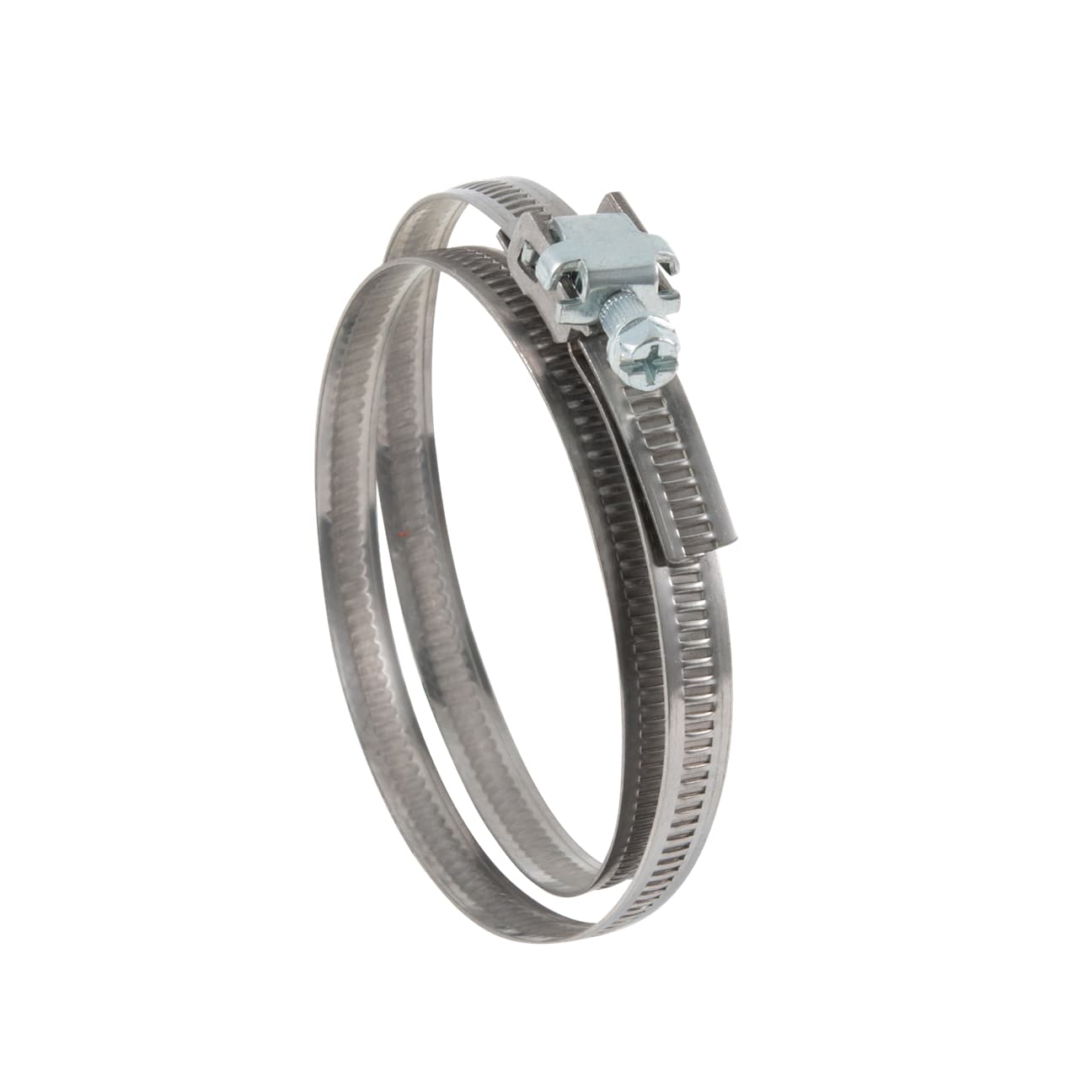

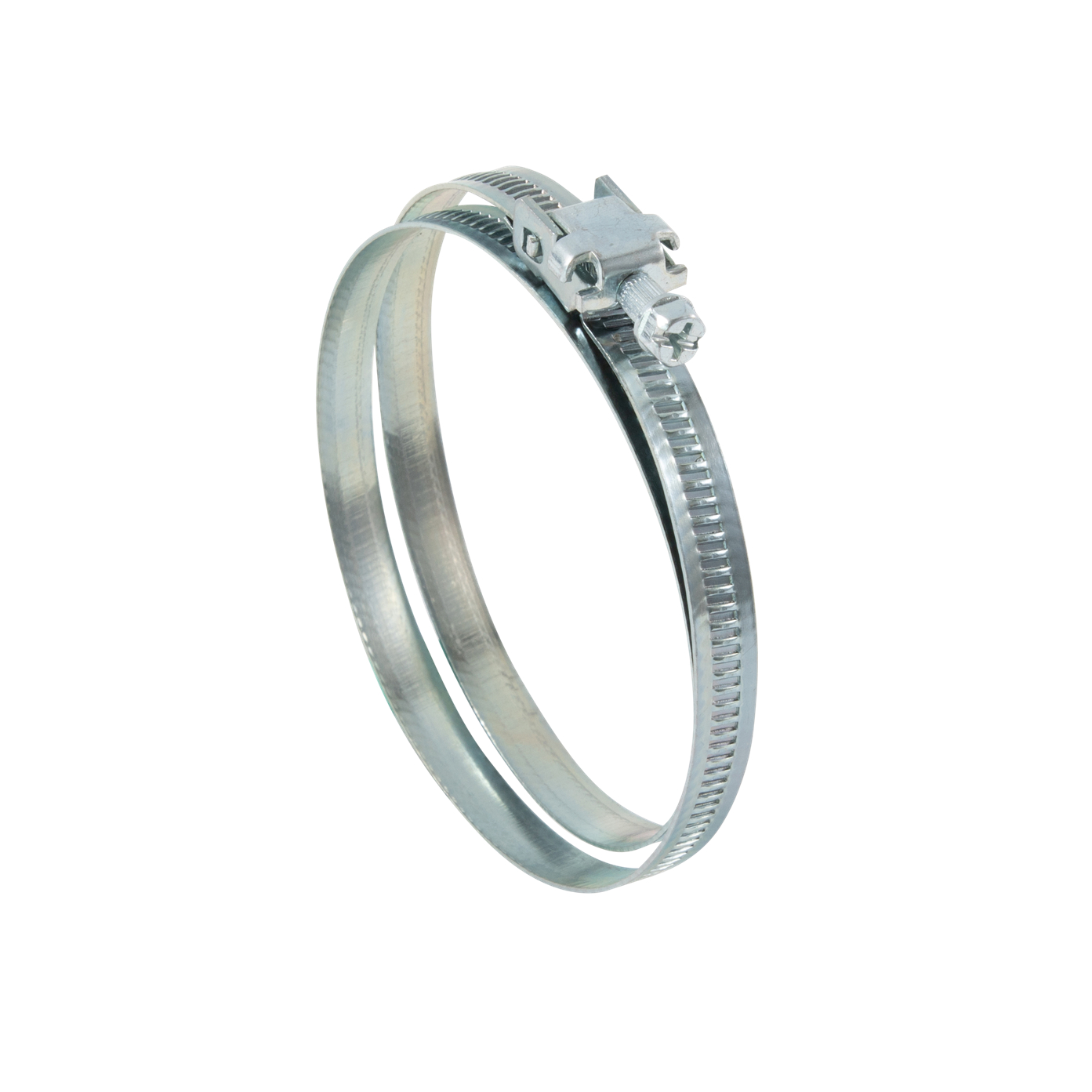

Product Images
Key Features
- Opens around existing hose, duct, pipe, cable route, or equipment component
- Faster to install than repeatedly winding a standard worm gear clamp from a fully open position
- Useful for maintenance, inspection, temporary fastening, and repeated removal
- Wide clamping ranges from 25mm up to 750mm depending on model
- 9mm band width for practical fastening across ventilation, plumbing, machinery, and construction tasks
- W1 and W2 material options for cost-sensitive or improved corrosion-resistance needs
Where Quick Release Hose Clamps Are Useful
| Use case | Why quick release helps | Typical application |
|---|---|---|
| Ventilation duct fastening | The clamp can open around a duct and lock quickly | HVAC flexible ducts, air ducts, exhaust ducts, ventilation repair |
| Machinery maintenance | Fast removal and reinstallation reduce service time | Equipment guards, auxiliary hoses, machine pipe connections |
| Plumbing and irrigation | Wide adjustment helps with mixed pipe or hose diameters | Drainage hoses, water transfer lines, agriculture irrigation connections |
| Construction site installation | Practical for temporary or adjustable fastening | Temporary ducts, site water lines, pipe support, repair work |
| Large-diameter components | The clamp can be wrapped around the installed part instead of sliding over the end | Large hoses, duct sleeves, pipe jackets, equipment covers |
Specification Reference
Quick Release Hose Clamp Size Chart
| Clamp range | Band width | Product type |
|---|---|---|
| 25-100mm | 9mm | Quick release hose clamp |
| 25-125mm | 9mm | Quick release hose clamp |
| 25-150mm | 9mm | Quick release hose clamp |
| 25-175mm | 9mm | Quick release hose clamp |
| 25-200mm | 9mm | Quick release hose clamp |
| 25-225mm | 9mm | Quick release hose clamp |
| 25-250mm | 9mm | Quick release hose clamp |
| 25-275mm | 9mm | Quick release hose clamp |
| 25-300mm | 9mm | Quick release hose clamp |
| 25-350mm | 9mm | Quick release hose clamp |
| 25-400mm | 9mm | Quick release hose clamp |
| 25-450mm | 9mm | Quick release hose clamp |
| 25-500mm | 9mm | Quick release hose clamp |
| 25-550mm | 9mm | Quick release hose clamp |
| 25-600mm | 9mm | Quick release hose clamp |
| 25-650mm | 9mm | Quick release hose clamp |
| 25-700mm | 9mm | Quick release hose clamp |
| 25-750mm | 9mm | Quick release hose clamp |
How to use this size chart: measure the outside diameter of the hose, duct, or pipe after it is installed on the fitting. Choose a clamp range that keeps the measured diameter inside the working range, preferably away from the exact minimum or maximum limit. For vibration, pressure, soft rubber hoses, thin ducts, or custom packing requirements, share the hose OD, material, and application with Demeite before ordering.
Material and Torque Reference
| Material | Band | Cover of housing | Bottom of housing | Screw | Suggested install torque |
|---|---|---|---|---|---|
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel | 2.6Nm |
| W2 | AISI 430SS | Zinc plated steel | AISI 430SS | Zinc plated steel | 2.6Nm |
Quick Release Clamp vs Standard Worm Gear Clamp
A standard worm gear clamp is simple and economical, but it usually needs to slide over the end of the hose or be opened and rewound manually. A quick release hose clamp is better when the installer needs to wrap the clamp around an existing part and lock it quickly.
Choose a quick release hose clamp for faster maintenance, duct fastening, large-diameter components, or locations where access is limited. Choose a standard worm gear clamp for lower-cost general hose fastening where the clamp can easily slide over the hose end.
Applications
- HVAC and ventilation duct fastening
- Flexible duct, exhaust duct, and air pipe connection
- Machinery maintenance and equipment repair
- Construction site pipe support and temporary fastening
- Plumbing, drainage, and irrigation lines
- Large-diameter hose, duct sleeve, or pipe jacket fastening
- General industrial fastening and project procurement
Selection Advice
Choose this quick release hose clamp when the installation needs a ready-to-use clamp with a defined clamping range. Choose the boxed quick-release hose clamp roll when the site requires many different diameters and workers need to cut the hose strip to length.
For dry indoor use and cost-sensitive projects, W1 zinc plated steel is practical. For improved corrosion resistance in equipment rooms, ventilation systems, plumbing, or maintenance environments, W2 with AISI 430SS band and bottom housing is a better option.
During installation, place the clamp on a supported fastening area and tighten gradually to the suggested 2.6Nm torque. Avoid over-tightening on soft rubber hose, plastic duct, thin-wall pipe, or lightweight sleeves.
Q&A
Q1: What is a quick release hose clamp used for?
It is used for hose, duct, pipe, and equipment fastening where the clamp needs to open, wrap around an existing part, lock quickly, and tighten without long screw winding.
Q2: Is a quick release hose clamp the same as a snap-lock clamp?
They are closely related terms. Many buyers use quick release clamp, snap-lock clamp, and open-and-lock hose clamp to describe a clamp that can open and close quickly before final tightening.
Q3: What is the difference between this product and the boxed quick-release hose clamp roll?
This product is a ready-to-use fixed-range quick release clamp. The boxed version is a 30m hose strip roll with matching clips or housings for cut-to-length assembly.
Q4: Can quick release hose clamps be used for ventilation ducts?
Yes. They are useful for flexible ducts, air ducts, exhaust ducts, HVAC maintenance, and other duct systems where the clamp may need to be removed or adjusted.
Q5: What size quick release hose clamp should I choose?
Measure the outside diameter after the hose or duct is installed on the fitting. Then choose a clamp range that covers that measurement with enough adjustment margin.
