Overview
Boxed Quick-Release Hose Clamp is a roll-type worm gear swing-latch fastening solution supplied in a 30m box. It is designed for buyers and maintenance teams that need flexible clamp length, quick field preparation, and practical fastening across multiple pipe or hose diameters.
Unlike fixed-size hose clamps, the boxed quick-release design allows users to cut the band according to the required diameter and assemble it with the quick-release housing. This makes it useful for project installation, equipment maintenance, ventilation duct work, large-diameter pipe fastening, and communication equipment installation where different clamp sizes may be needed on site.
This product is also described as a worm gear swing-latch clamp, quick-release clamp, or snap-lock clamp. The hinged latch in the housing can release the worm screw engagement from the band, so the installer can open the clamp, wrap it around the hose or duct, and lock it back into position quickly. This is especially helpful when the clamp must be installed around an existing pipe, cable route, ventilation duct, or communication equipment component where sliding a closed clamp over the end is not convenient.

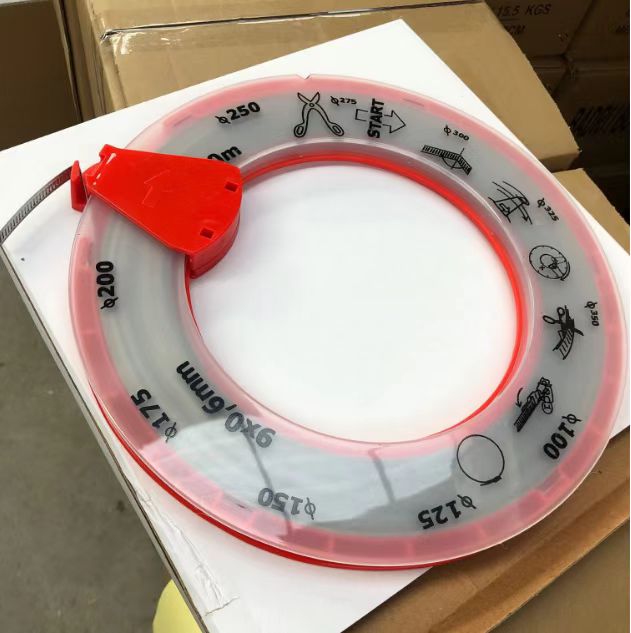

Product Images
Key Features
- 30m boxed hose clamp roll for flexible inventory and field installation
- Worm gear swing-latch housing allows the band to open and lock quickly around existing hoses, ducts, cables, or equipment components
- Quick-release and snap-lock mechanism reduces repeated screw winding during assembly and maintenance
- Can be cut to match different pipe, hose, duct, and equipment diameters
- Suitable for communication equipment cabinets, cable routing support, ventilation systems, machinery maintenance, and construction pipe fastening
- Practical for maintenance teams that need one product to cover multiple sizes
- W1 and W2 material configurations support different cost, strength, and corrosion-resistance requirements
Specification Reference
Specification Table 1
| Product type | Band width | Roll length | Assembly type | Suggested install torque |
|---|---|---|---|---|
| Boxed Quick-Release Hose Clamp / Worm Gear Swing-Latch Clamp | 9mm | 30m | Cut-to-length band with quick-release snap-lock housing | 2.6Nm |
Specification Table 2
| 材质 / Material | 钢带 / Band | 箍头盖 / Cover of housing | 箍头底 / Bottom of housing | 螺丝 / Screw | 建议安装扭力 / suggested install torque |
|---|---|---|---|---|---|
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel | 2.6Nm |
| W2 | AISI 430SS | Zinc plated steel | AISI 430SS | Zinc plated steel | 2.6Nm |
Applications
- Communication equipment installation, cable management, and cabinet accessory fastening
- Existing pipe, duct, cable, or equipment routes where an open-and-lock swing-latch clamp is easier to install
- Ventilation duct fastening and flexible duct connection
- Machinery maintenance and equipment repair
- Construction pipe support, plumbing, and drainage assemblies
- Large-diameter hose, pipe, and component fastening where adjustable length is needed
- Project procurement where multiple clamp sizes are required but inventory needs to stay simple
Selection Advice
Choose the boxed quick-release hose clamp when the installation site has many different diameters or when exact clamp sizes are difficult to confirm before work begins. The 30m roll helps reduce the need to stock many fixed-size clamps and allows workers to prepare the required clamp length on site.
Choose the worm gear swing-latch structure when the clamp needs to be opened around an existing assembly instead of sliding over the end of a hose or pipe. This makes the product practical for communication equipment, cable routing, duct retrofits, maintenance work, and large-diameter fastening where speed and access matter.
For dry indoor use and cost-sensitive projects, W1 zinc plated steel can be selected. For better corrosion resistance in indoor equipment rooms, ventilation systems, or communication equipment environments, W2 with AISI 430SS band and bottom housing provides a stronger material option.
When installing, cut the band cleanly, assemble it with the quick-release housing, position the clamp on the supported fastening area, and tighten gradually to the recommended 2.6Nm torque. Avoid over-tightening on plastic ducts, thin-wall pipes, and soft hose materials.
Q&A
Q1: What is a boxed quick-release hose clamp used for?
It is used for adjustable hose, pipe, duct, and equipment fastening where the required diameter may vary. It is especially useful for field installation, maintenance, ventilation work, and communication equipment projects.
Q2: Is this product a worm gear swing-latch clamp?
Yes. It uses a worm gear tightening principle with a swing-latch style housing. The latch allows the band to open, wrap around the application, and snap back into position before final tightening.
Q3: What is the length of this boxed hose clamp roll?
The roll length is 30m, allowing users to cut the band according to the required installation diameter.
Q4: Can it be used for communication equipment?
Yes. It can be used for communication equipment cabinets, cable routing support, accessory fastening, ventilation-related fastening, and other equipment installation tasks where adjustable clamp length is helpful.
Q5: What is the difference between W1 and W2?
W1 uses zinc plated steel for the band, housing, and screw. W2 uses AISI 430SS for the band and bottom housing, with zinc plated steel for the cover and screw.
Q6: What torque should be used during installation?
The suggested install torque is 2.6Nm. Tighten gradually and avoid excessive torque, especially on plastic, thin-wall, or soft hose connections.
