Name: Single Bolt Solid Heavy Duty Clamp
Brand: HoseClamp

Overview

Single Bolt Solid Heavy Duty Clamp is a professional fastening product for automotive, construction, machinery, ventilation, plumbing, and industrial hose or pipe assemblies. It is intended for buyers who need dependable fastening hardware, practical installation, and consistent performance across project and maintenance scenarios.

Product Images

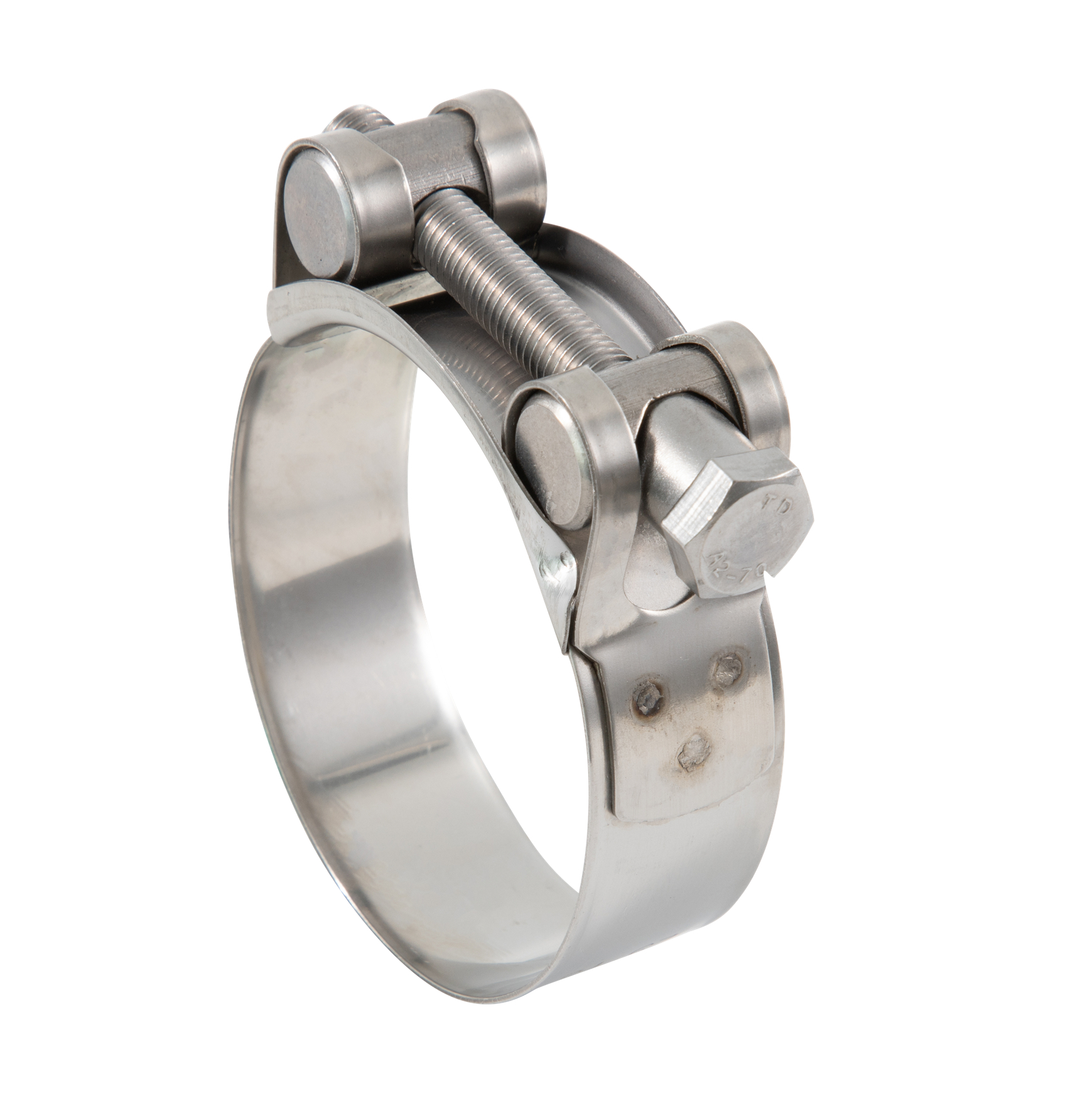

Single Bolt Solid Heavy Duty Clamp product view 1

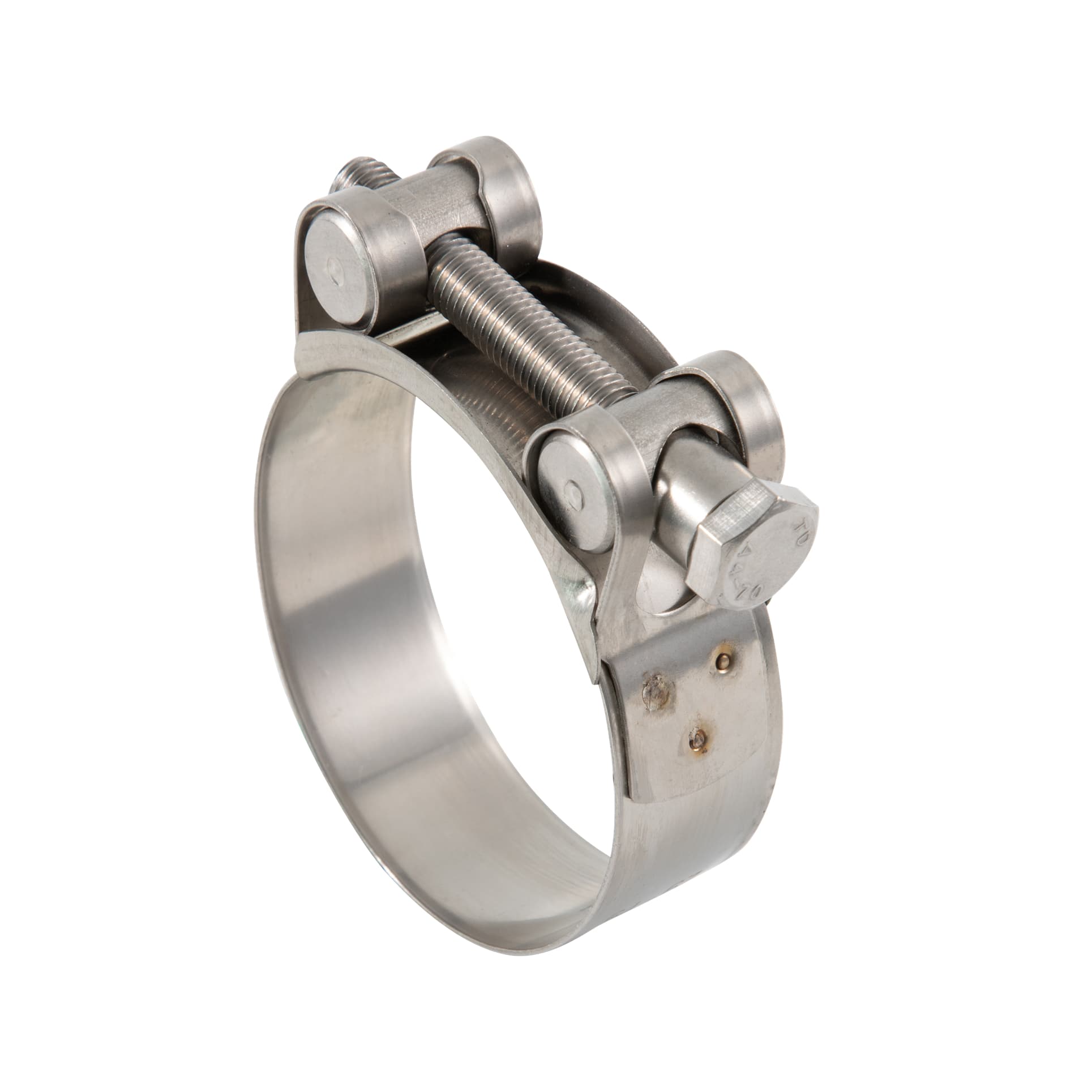

Single Bolt Solid Heavy Duty Clamp product view 2

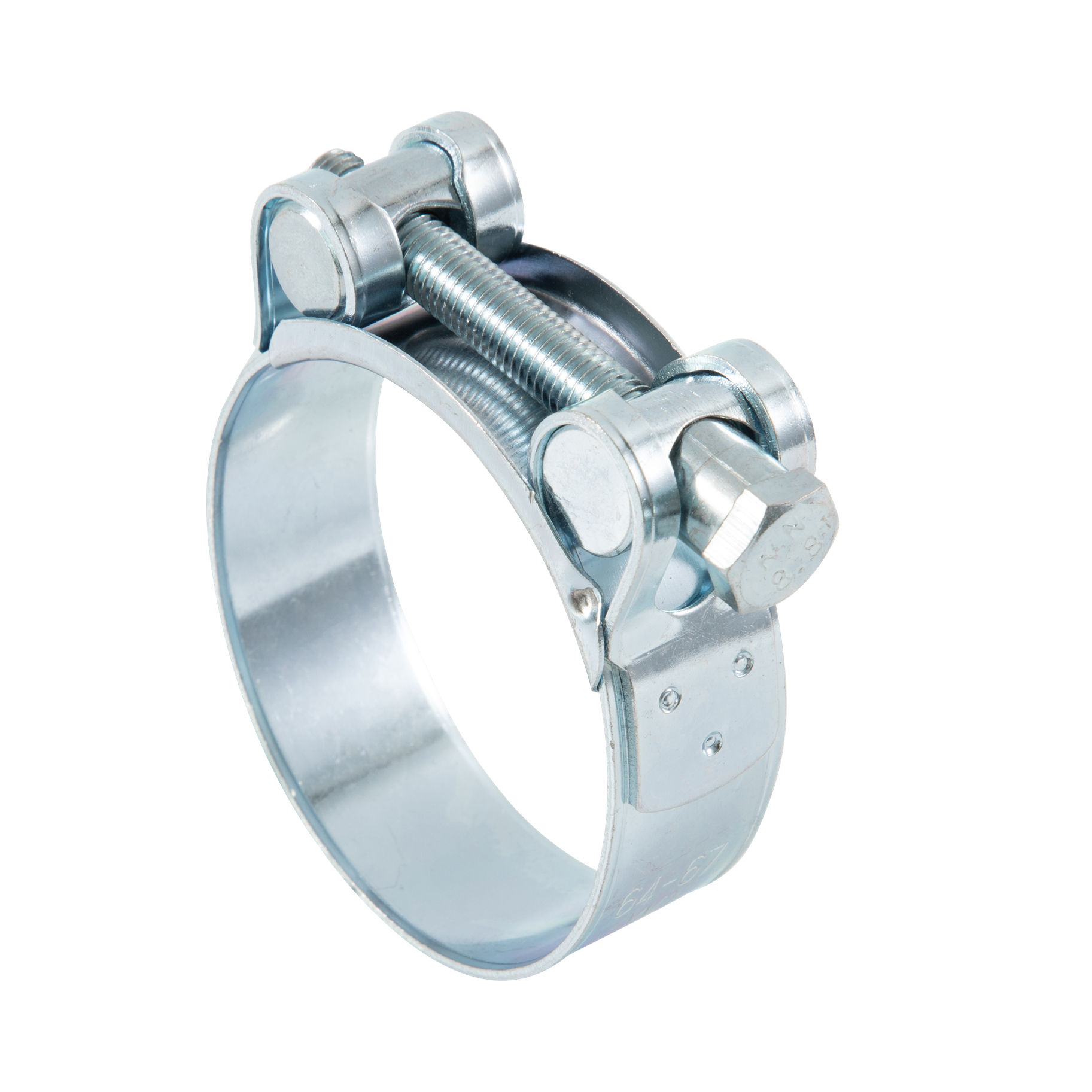

Single Bolt Solid Heavy Duty Clamp product view 3

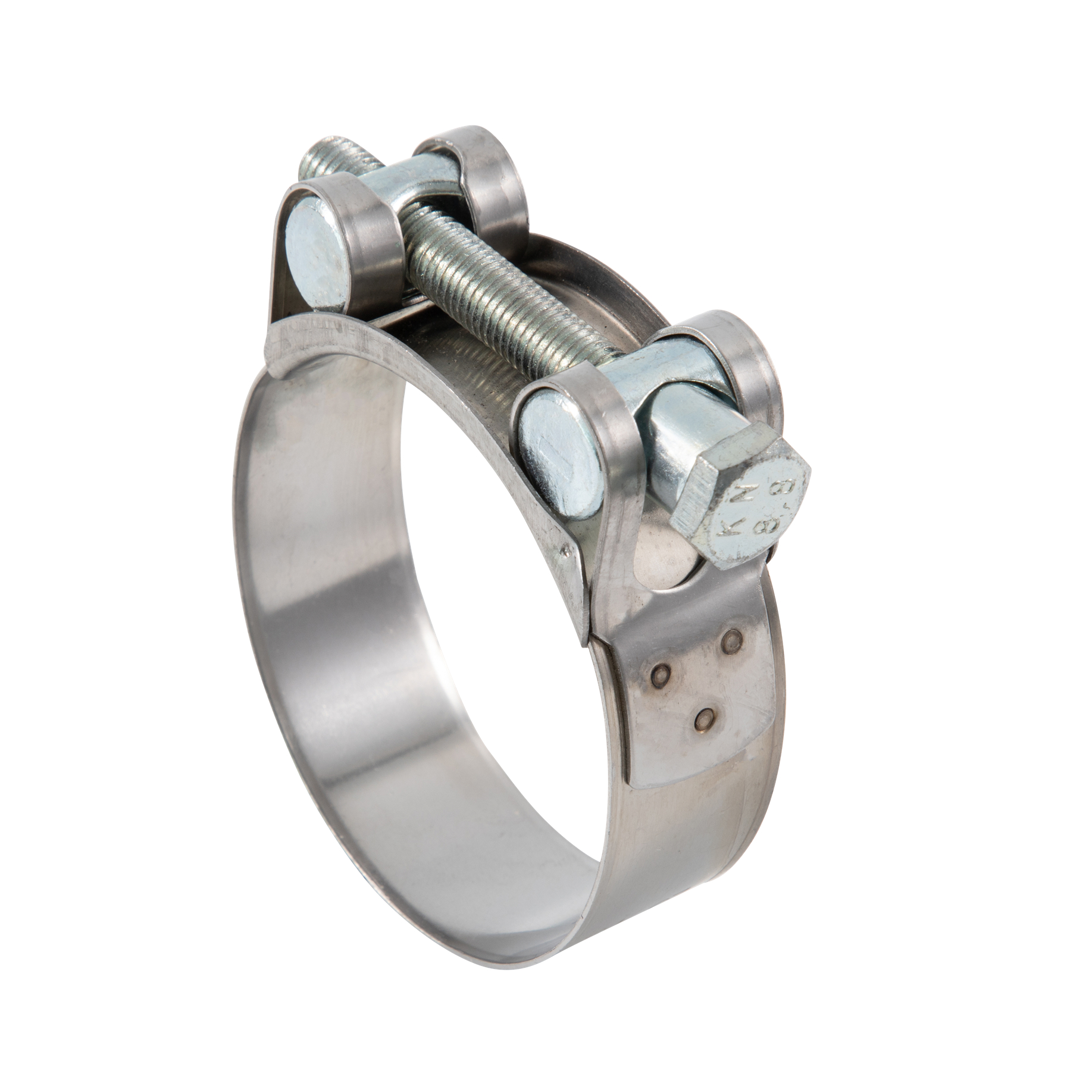

Single Bolt Solid Heavy Duty Clamp product view 4

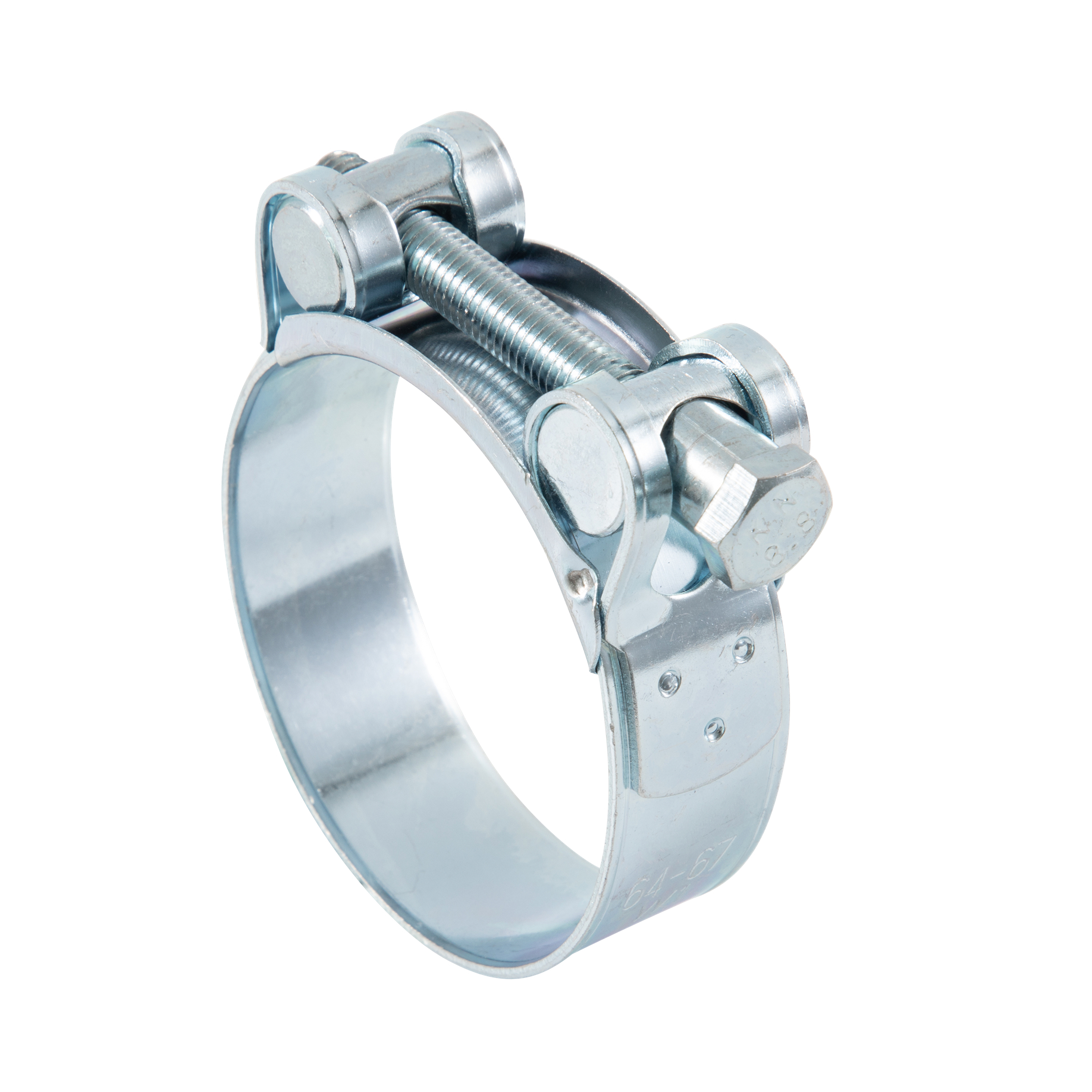

Single Bolt Solid Heavy Duty Clamp product view 5

Key Features

Reliable fastening structure for hose, pipe, duct, or component assemblies
Practical size and material options for different working environments
Suitable for automotive parts, building materials, equipment repair, and industrial supply
Designed for repeatable tightening and stable installation
Available for sourcing, inquiry, and custom project requirements

Specification Reference

Specification Table 1

QL03 鍗曞ご瀹炲績寮哄姏锛圲nitary clamp锛
鍔犵揣鑼冨洿 Size mm	铻轰笣 screw	W1	W2&W4&W5	寤鸿瀹夎鎵姏 suggested install torque	鍙?绠?pcs/carton
浜у搧璐у彿 Item no.	閽㈠甫bandwidth mm	浜у搧璐у彿 Item no.	閽㈠甫bandwidth mm
17-19	M5脳40	QL03A1719	0.6脳18	QL03B1719	QL03D1719	0.6脳18	4.5Nm	200
20-22	M5脳40	QL03A2022	QL03B2022	QL03D2022	200
23-25	M5脳40	QL03A2325	QL03B2325	QL03D2325	200
26-28	M5脳40	QL03A2628	QL03B2628	QL03D2628	200
29-31	M6脳55	QL03A2931	0.8脳20	QL03B2931	QL03D2931	0.6脳20	9Nm	200
32-35	M6脳55	QL03A3235	QL03B3235	QL03D3235	200
36-39	M6脳55	QL03A3639	QL03B3639	QL03D3639	200
40-43	M6脳55	QL03A4043	QL03B4043	QL03D4043	100
44-47	M6脳55	QL03A4447	1.2脳22	QL03B4447	QL03D4447	0.8脳22	100
48-51	M6脳55	QL03A4851	QL03B4851	QL03D4851	100
52-55	M6脳55	QL03A5255	QL03B5255	QL03D5255	100
56-59	M6脳55	QL03A5659	QL03B5659	QL03D5659	100
60-63	M6脳55	QL03A6063	QL03B6063	QL03D6063	100
64-67	M8脳70	QL03A6467	1.5脳22	QL03B6467	QL03D6467	18Nm	100
68-73	M8脳70	QL03A6873	1.5脳24	QL03B6873	QL03D6873	0.8脳24	100
74-79	M8脳70	QL03A7479	QL03B7479	QL03D7479	50
80-85	M8脳70	QL03A8085	QL03B8085	QL03D8085	50
86-91	M8脳70	QL03A8691	QL03B8691	QL03D8691	50
92-97	M8脳70	QL03A9297	QL03B9297	QL03D9297	50
981-03	M8脳70	QL93A8103	QL93B8103	QL93D8103	50
104-112	M8脳80	QL103A4112	QL103B4112	QL103D4112	50
113-121	M8脳80	QL113A3121	QL113B3121	QL113D3121	50
122-130	M8脳80	QL123A2130	QL123B2130	QL123D2130	50
131-139	M10脳90	QL133A1139	1.7脳26	QL133B1139	QL133D1139	1.0脳26	29Nm	50
140-148	M10脳90	QL143A0148	QL143B0148	QL143D0148	50
149-161	M10脳110	QL143A9161	QL143B9161	QL143D9161	50
162-174	M10脳110	QL163A2174	QL163B2174	QL163D2174	25
175-187	M10脳110	QL173A5187	QL173B5187	QL173D5187	25
188-200	M10脳110	QL183A8200	QL183B8200	QL183D8200	25
201-213	M10脳110	QL203A1213	QL203B1213	QL203D1213	25
214-226	M10脳110	QL213A4226	QL213B4226	QL213D4226	25
227-239	M10脳110	QL223A7239	QL223B7239	QL223D7239	25
240-252	M10脳110	QL243A0252	QL243B0252	QL243D0252	25

Specification Table 2

鏉愯川 Material	閽㈠甫 Band	鑸屾澘 bridge	杞?Trunnion	濂楃 sleeving	铻烘爴 bolt
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 430SS/304SS	AISI 430SS/304SS	Zinc plated steel	Zinc plated steel	Zinc plated steel
W4	304ss	304ss	304ss	304ss	A2-70 Zinc plated
W5	316SS	316SS	316SS	316SS	A4-70 Zinc plated

Applications

Automotive hose and component fastening
Construction and building material assemblies
Ventilation, plumbing, and irrigation lines
Machinery maintenance and equipment repair
General industrial fastening and project procurement
