Overview
Single Bolt Double Layer Solid Heavy Duty Clamp is a professional fastening product for automotive, construction, machinery, ventilation, plumbing, and industrial hose or pipe assemblies. It is intended for buyers who need dependable fastening hardware, practical installation, and consistent performance across project and maintenance scenarios.

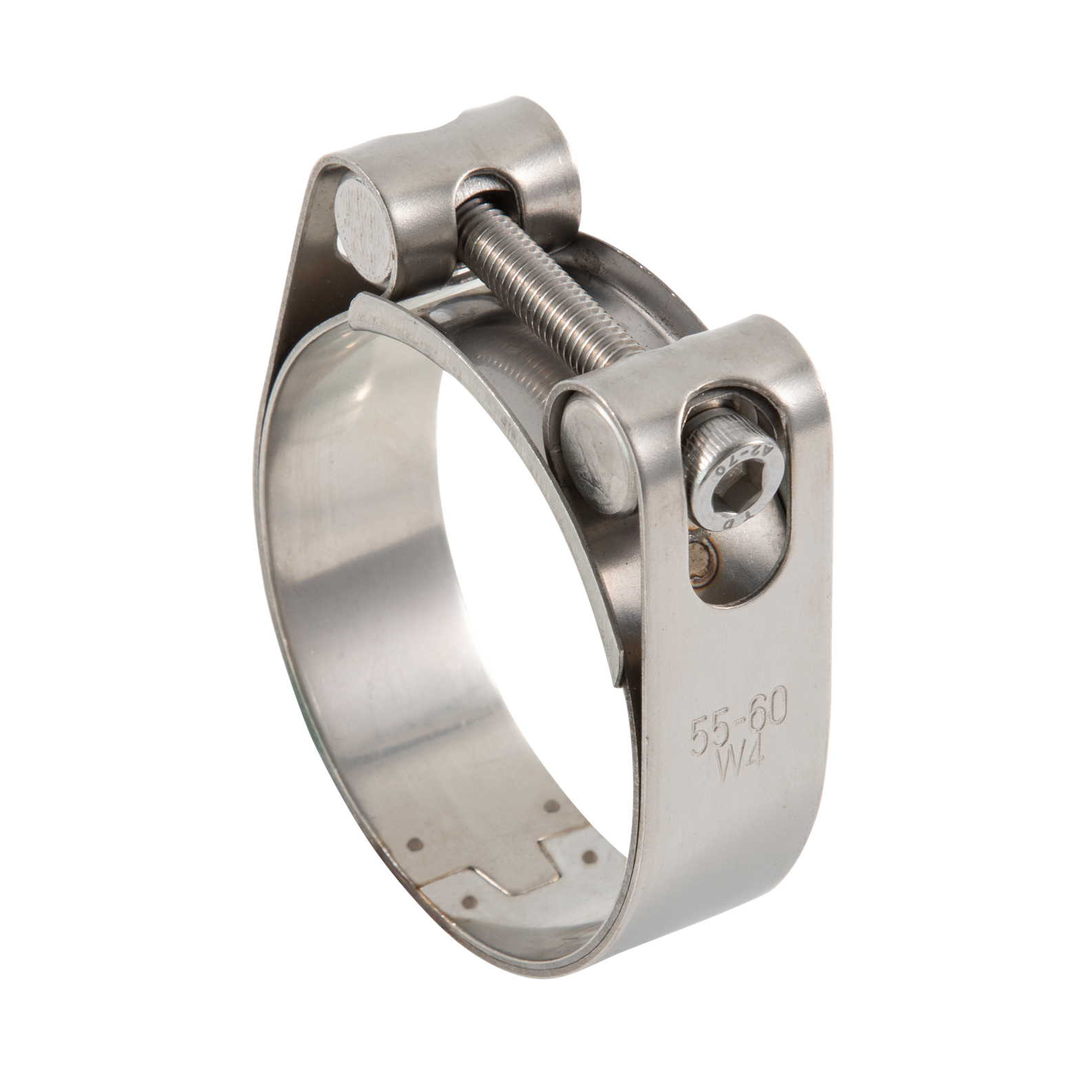

Product Images
Key Features
- Reliable fastening structure for hose, pipe, duct, or component assemblies
- Practical size and material options for different working environments
- Suitable for automotive parts, building materials, equipment repair, and industrial supply
- Designed for repeatable tightening and stable installation
- Available for sourcing, inquiry, and custom project requirements
Specification Reference
Specification Table 1
| QL04 鍗曞ご鍙屽眰瀹炲績寮哄姏鍗＄畭 Unitary clamp with double bands |
|---|
| 鍔犵揣鑼冨洿 / Size | 浜у搧璐у彿 / Item no. | 甯﹀ / bandwidth mm | 铻轰笣 / screw | 鏂欏帤 / thickness of band / mm | 寤鸿瀹夎鎵姏 / suggested / install torque | 鍙?绠?/ pcs/carton |
| mm | W1 | W4 | W5 |
| 35-40 | QL04A3540 | QL04D3540 | QL04E3540 | 20 | M6*45 | 1.0 | 9Nm | 50 |
| 40-45 | QL04A4045 | QL04D4045 | QL04E4045 | 1.0 | 50 |
| 45-50 | QL04A4550 | QL04D4550 | QL04E4550 | 1.0 | 50 |
| 50-55 | QL04A5055 | QL04D5055 | QL04E5055 | 1.0 | 50 |
| 55-60 | QL04A5560 | QL04D5560 | QL04E5560 | 1.0 | 50 |
| 60-65 | QL04A6065 | QL04D6065 | QL04E6065 | 1.0 | 50 |
| 65-70 | QL04A6570 | QL04D6570 | QL04E6570 | 1.0 | 50 |
| 70-75 | QL04A7075 | QL04D7075 | QL04E7075 | 1.0 | 50 |
| 75-80 | QL04A7580 | QL04D7580 | QL04E7580 | 1.0 | 50 |
| 80-85 | QL04A8085 | QL04D8085 | QL04E8085 | 1.0 | 50 |
| 85-90 | QL04A8590 | QL04D8590 | QL04E8590 | 1.0 | 50 |
| 90-95 | QL04A9095 | QL04D9095 | QL04E9095 | 1.0 | 50 |
| 95-100 | QL04A95100 | QL04D95100 | QL04E95100 | 1.0 | 50 |
| 100-105 | QL04A100105 | QL04D100105 | QL04E100105 | 1.0 | 50 |
| 105-110 | QL04A105110 | QL04D105110 | QL04E105110 | 1.0 | 50 |
| 110-115 | QL04A110115 | QL04D110115 | QL04E110115 | 1.0 | 50 |
| 115-120 | QL04A115120 | QL04D115120 | QL04E115120 | 1.0 | 50 |
| 120-125 | QL04A120125 | QL04D120125 | QL04E120125 | 1.0 | 50 |
| 125-130 | QL04A125130 | QL04D125130 | QL04E125130 | 1.0 | 50 |
| 130-135 | QL04A130135 | QL04D130135 | QL04E130135 | 1.0 | 50 |
| 135-140 | QL04A135140 | QL04D135140 | QL04E135140 | 1.0 | 50 |
| 140-145 | QL04A140145 | QL04D140145 | QL04E140145 | 1.0 | 50 |
| 145-150 | QL04A145150 | QL04D145150 | QL04E145150 | 1.0 | 50 |
| 150-155 | QL04A150155 | QL04D150155 | QL04E150155 | 1.0 | 50 |
| 155-160 | QL04A155160 | QL04D155160 | QL04E155160 | 1.0 | 50 |
Specification Table 2
| 鏉愯川 / Material | 閽㈠甫 / Band | 鑸屾澘 / bridge | 杞?/ Trunnion | 铻烘爴 / bolt |
|---|
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| W4 | AISI 301SS/304SS | AISI 301SS/304SS | AISI 301SS/304SS | A2-70 Zinc plated |
| W5 | AISI 316SS | AISI 316SS | AISI 316SS | A4-70 Zinc plated |
Applications
- Automotive hose and component fastening
- Construction and building material assemblies
- Ventilation, plumbing, and irrigation lines
- Machinery maintenance and equipment repair
- General industrial fastening and project procurement
