Overview
E Type Quick Install Pipe Clamp Support is a professional fastening product for automotive, construction, machinery, ventilation, plumbing, and industrial hose or pipe assemblies. It is intended for buyers who need dependable fastening hardware, practical installation, and consistent performance across project and maintenance scenarios.

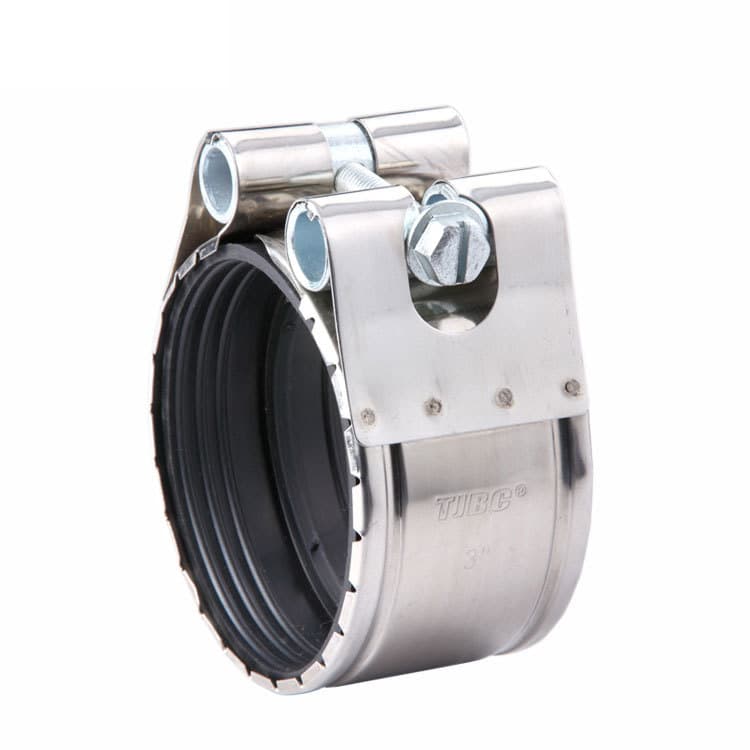

Product Images
Key Features
- Reliable fastening structure for hose, pipe, duct, or component assemblies
- Practical size and material options for different working environments
- Suitable for automotive parts, building materials, equipment repair, and industrial supply
- Designed for repeatable tightening and stable installation
- Available for sourcing, inquiry, and custom project requirements
Specification Reference
E Type Quick Install Pipe Clamp Support Dimension Chart
| E型管束（快装式管束） / Type E coupling | |||
|---|---|---|---|
| 尺寸 | 每箱装量 | 外箱尺寸 | |
| mm | inch | carton size mm | |
| DN50 | 2" | 100 | 45*32*30 |
| DN75 | 3" | 100 | 60*42*33 |
| DN100 | 4" | 100 | 72*51*32 |
| DN125 | 5" | 50 | 41*43.5*42 |
How to use this dimension chart: This table is a dimensional reference for selecting the correct E Type Quick Install Pipe Clamp Support. Match the nominal pipe size, inch reference, packing quantity, and carton information with the project requirement. For building drainage, pipe support, equipment installation, or custom packaging, confirm the pipe outside diameter, installation position, load condition, and required quantity before ordering.
Applications
- Automotive hose and component fastening
- Construction and building material assemblies
- Ventilation, plumbing, and irrigation lines
- Machinery maintenance and equipment repair
- General industrial fastening and project procurement
